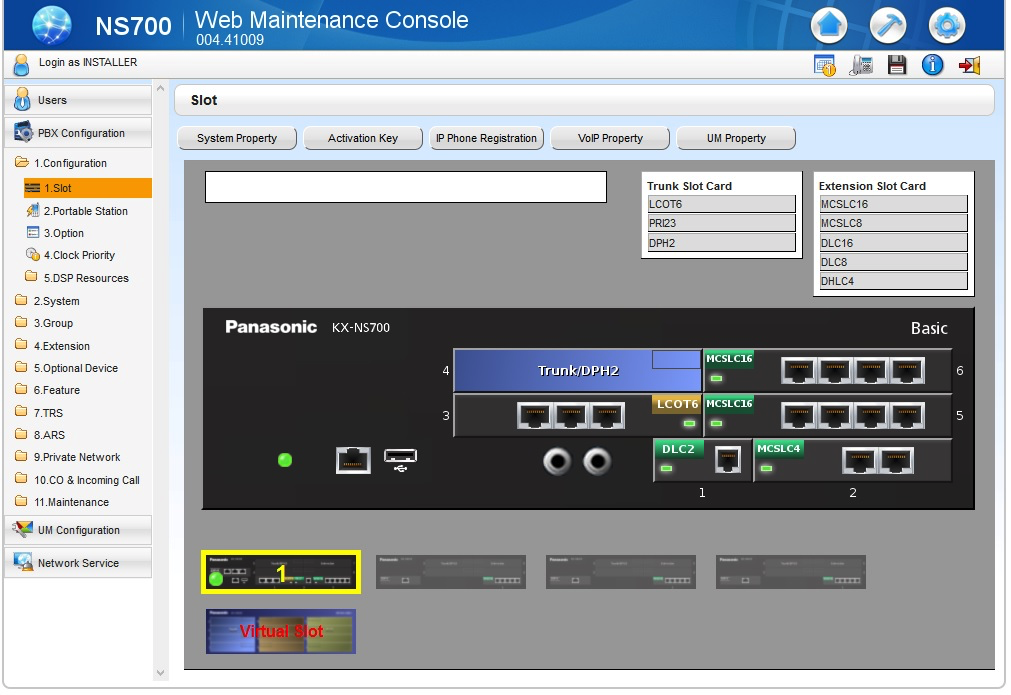

- When logging into your NS-700 you will be initially greeted with this screen. Here you will select the virtual slot you wish to configure.

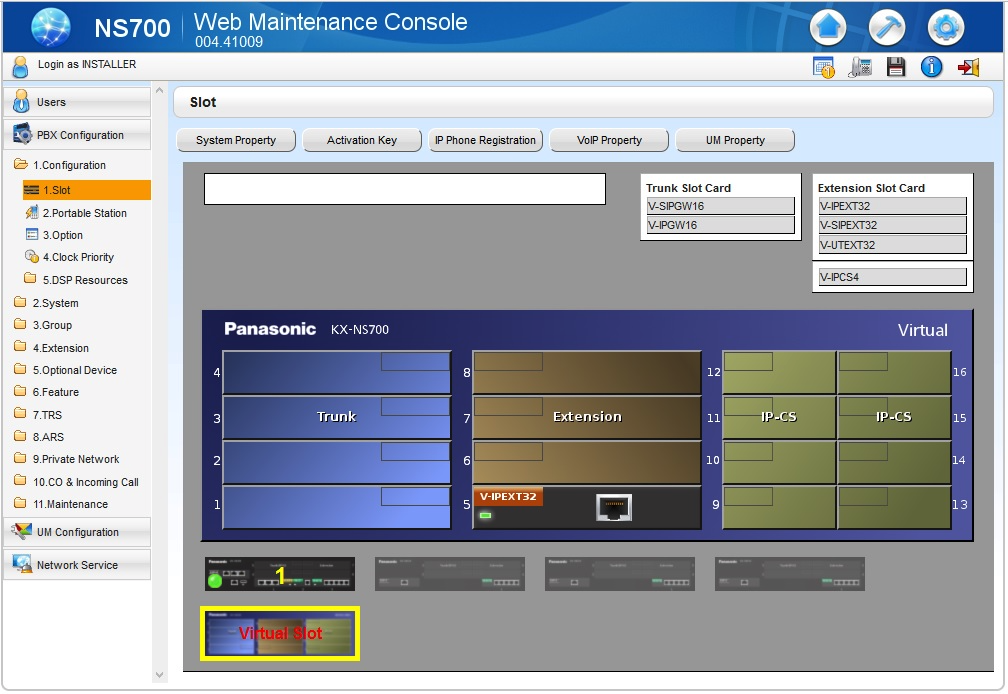

2. After selecting virtual slot, click and drag a V-SIPGW16 card to the trunk rack, slot 1.

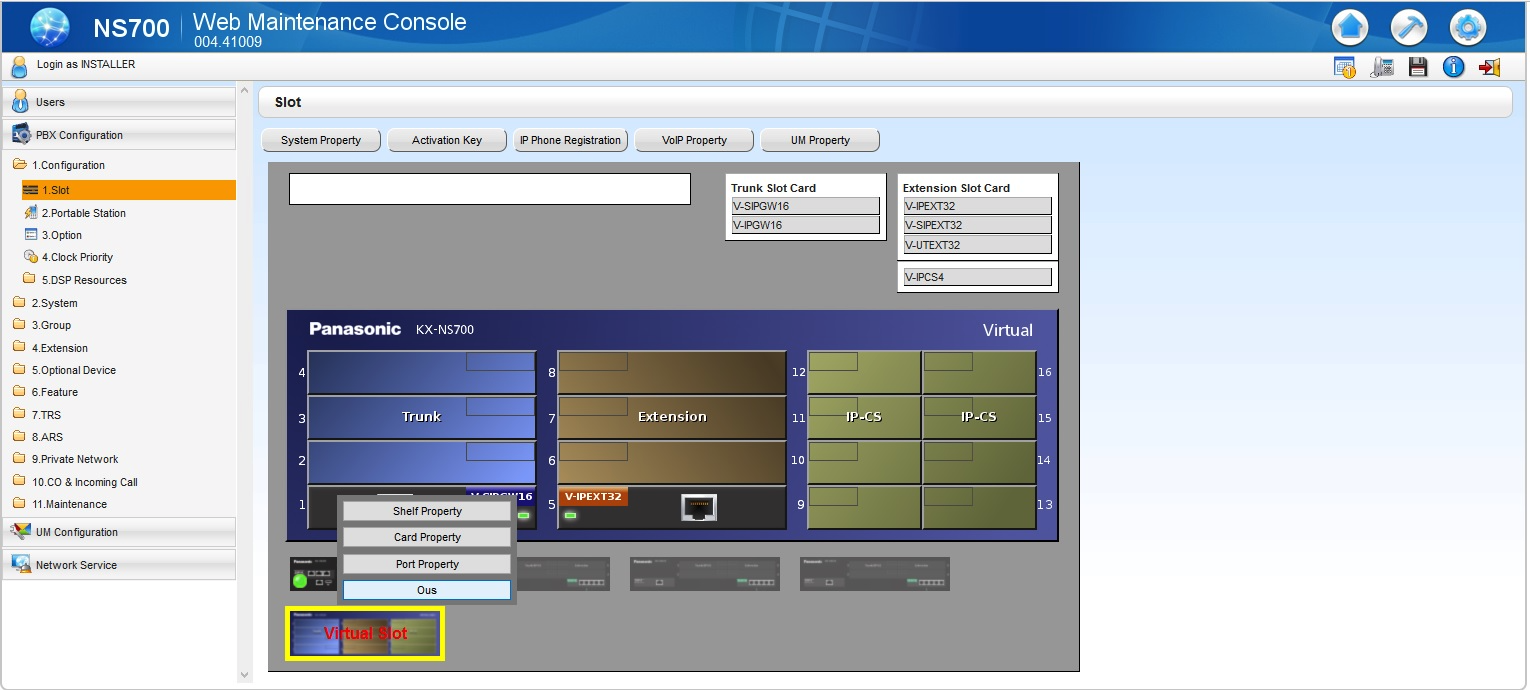

3. Next, put the card "Out of Service" by selecting Ous.

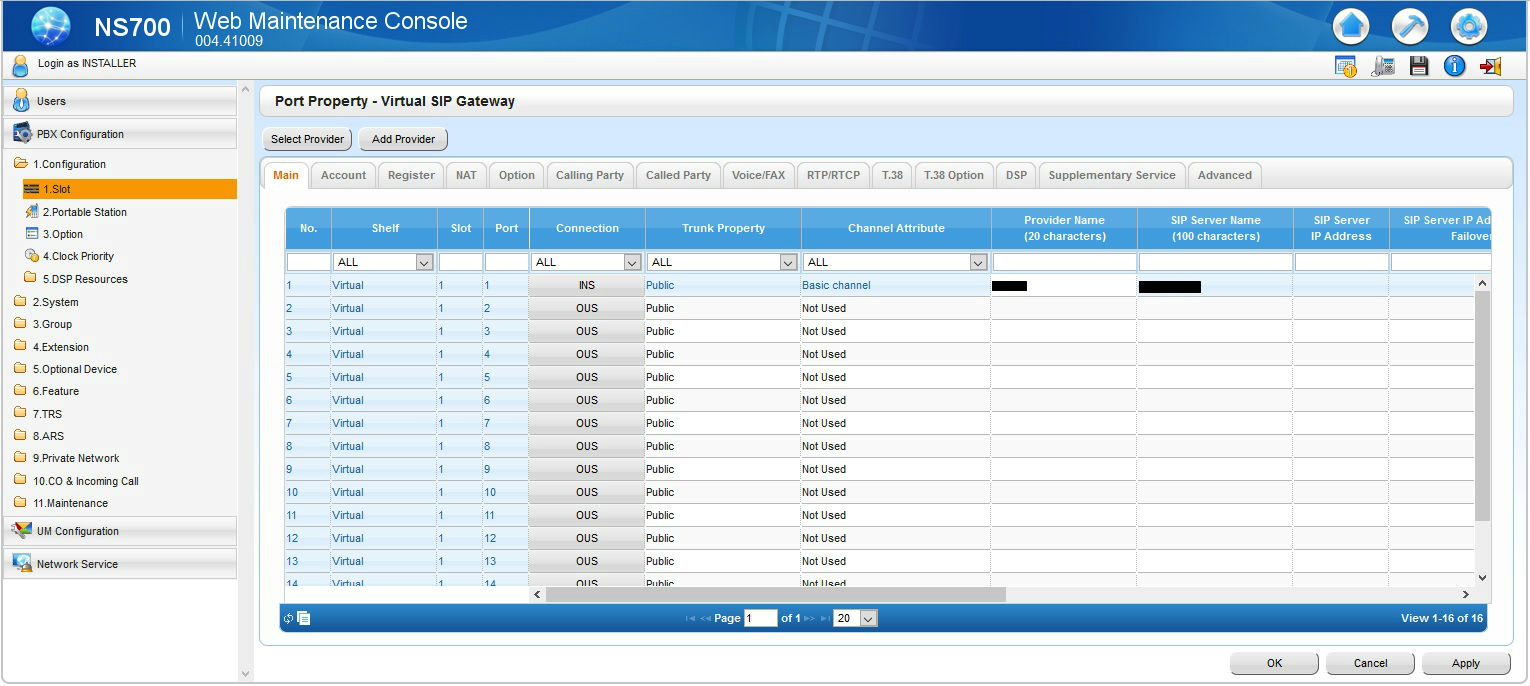

4. Through the same menu used to put the card "Out of Service" navigate to the "Port Property" menu. Under the "Main Tab" input the "Provider Name" as "SIPTRUNK" and the "SIP Server Name" as "gw1.siptrunk.com".

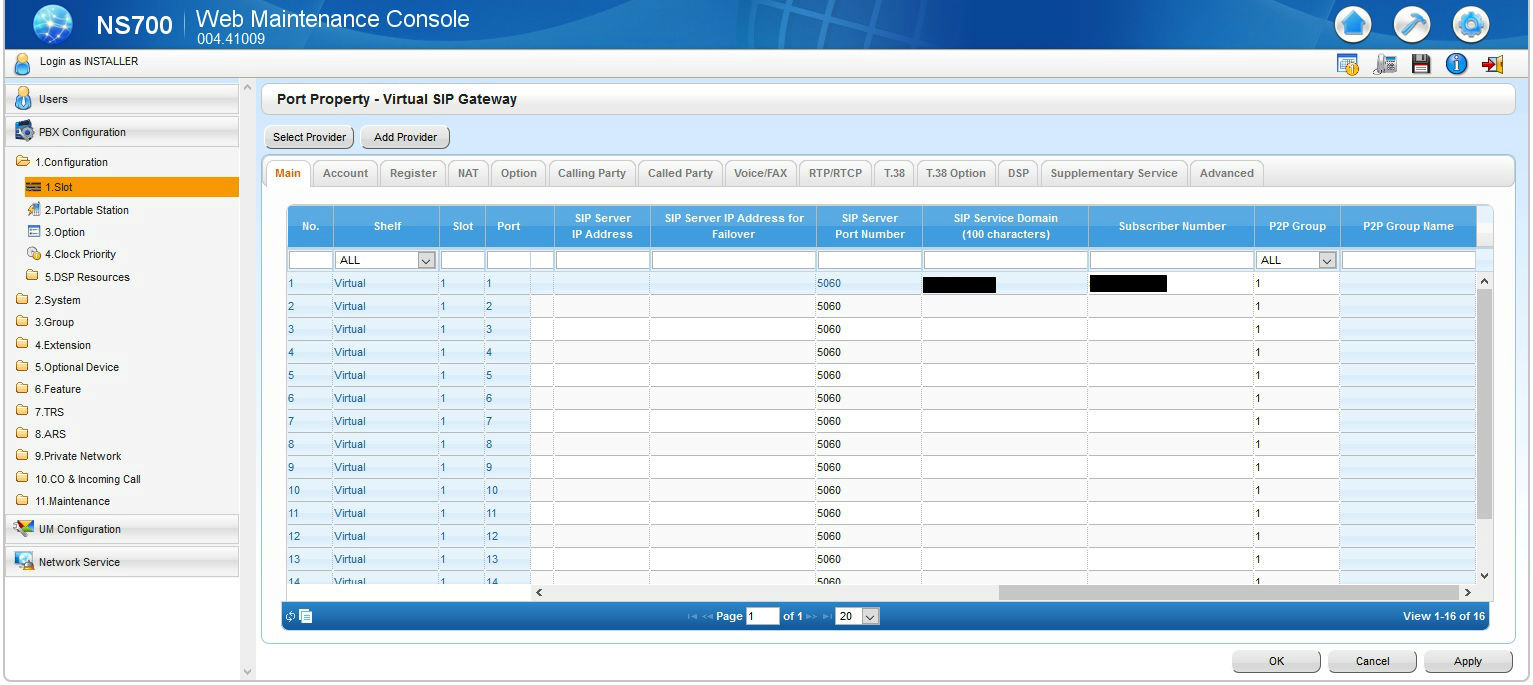

5. Make sure the port is set to 5060 and input the "SIP Service Domain" as "gw1.siptrunk.com" and the "Subscriber Number to "YOURTRUNKNUMBER" CLICK APPLY.

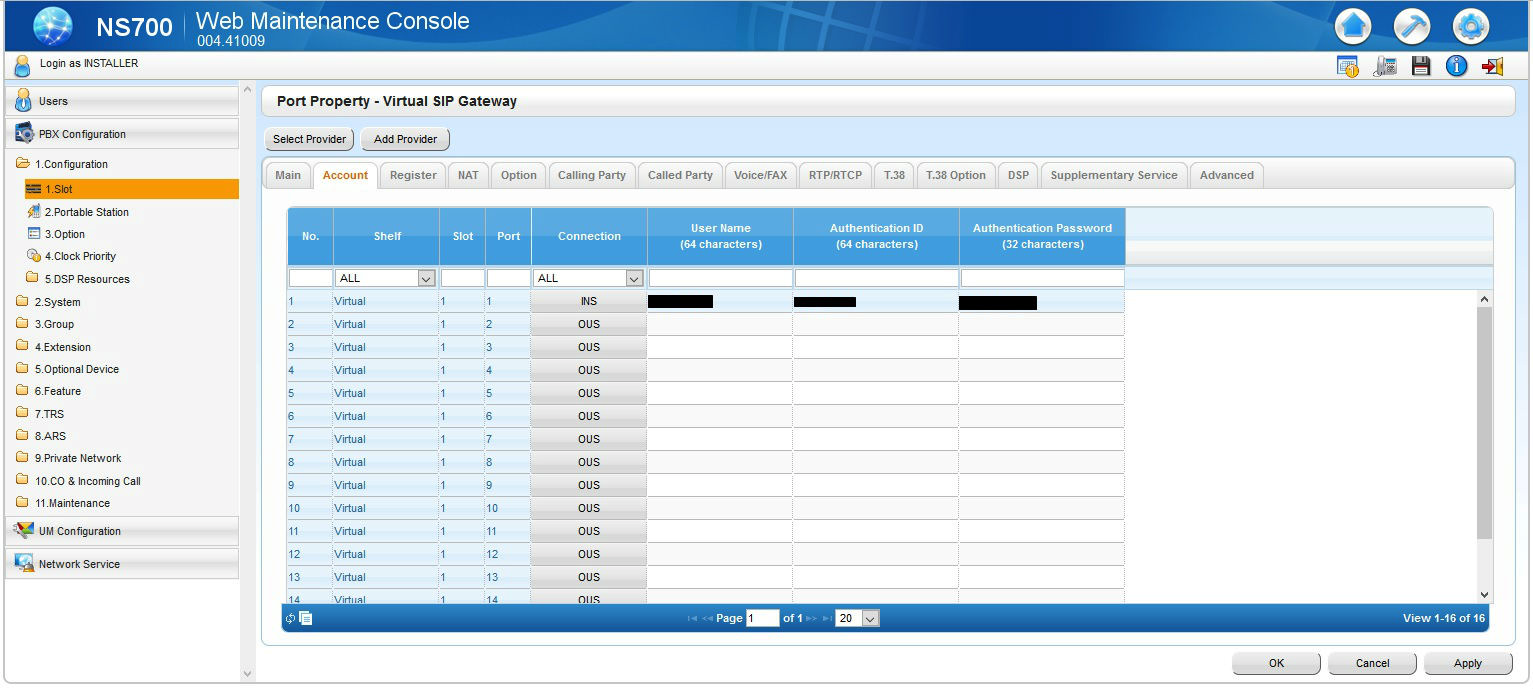

6. Navigate to the "Account" Tab. This is where you will enter your trunk registration information into Virtual Slot 1:
- User Name= Trunk #
- Authentication ID= Trunk #
Authentication Password= Trunk Password
Click "Apply".

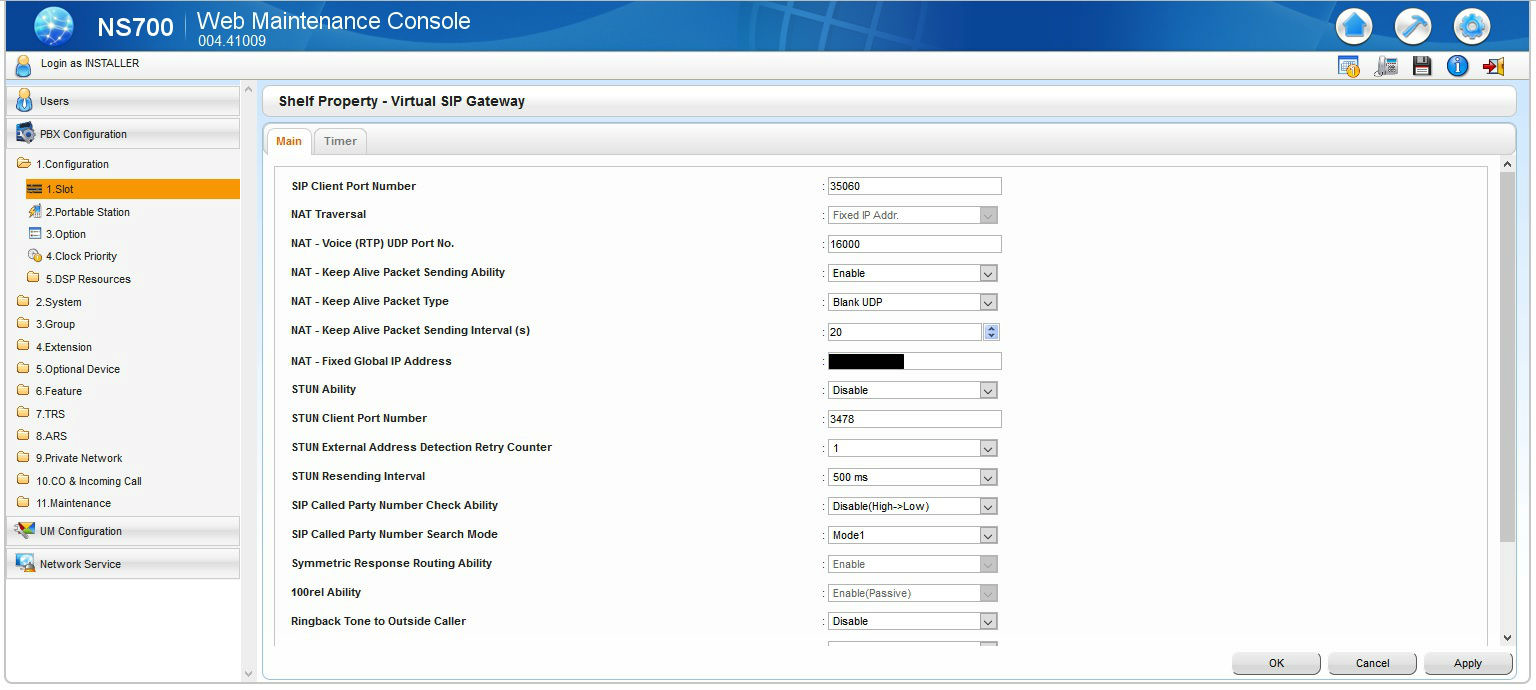

7. Navigate back to the menu where you selected "Port Property" and select "Shelf Property".
- SIP Client Port Number = 35060
- NAT - Voice (RTP) UDP Port No. = 16000
- NAT - Keep Alive Packet Sending Ability = Enable
- NAT - Keep Alive Packet Type = Blank UDP
- NAT - Keep Alive Packet Sending Interval = 20
- NAT - Fixed Global IP Address = YOUR PUBLIC IP
- Stun Ability = Disable
Click "Apply".

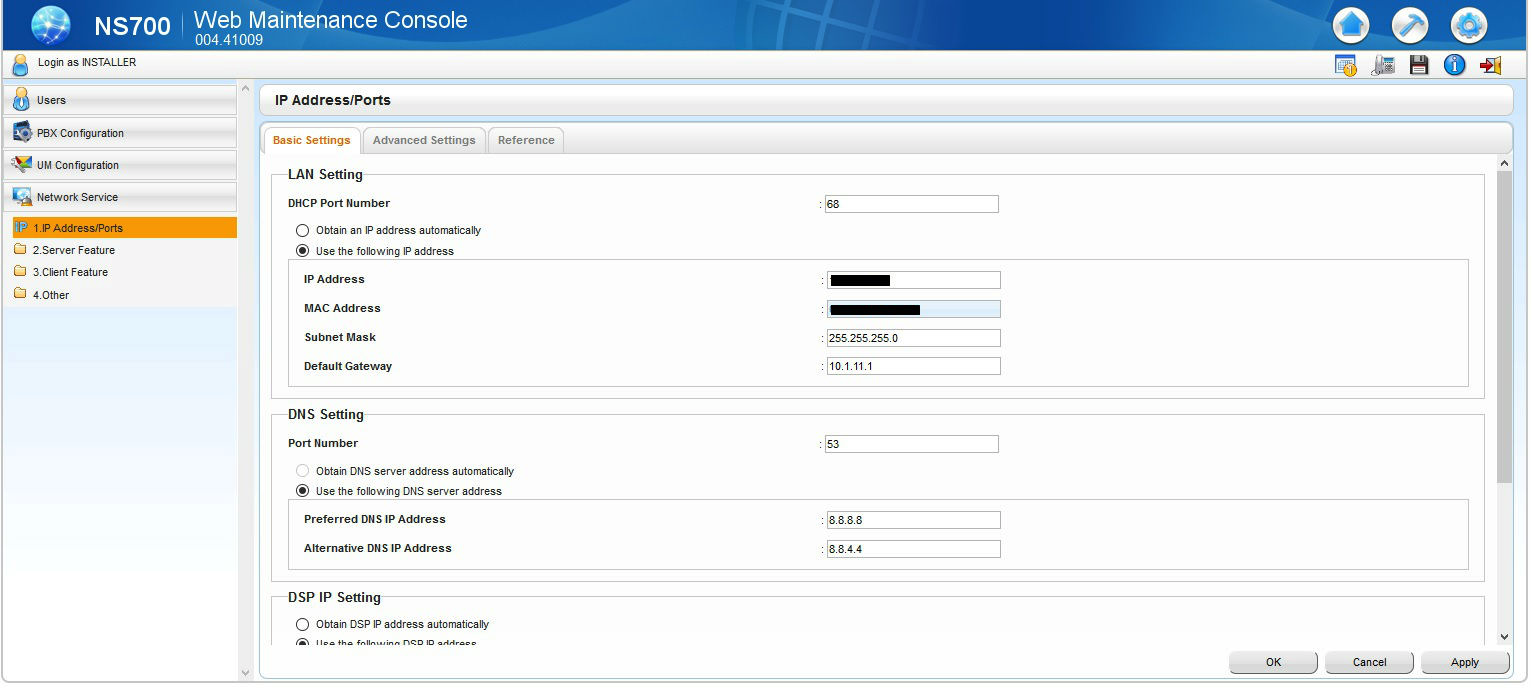

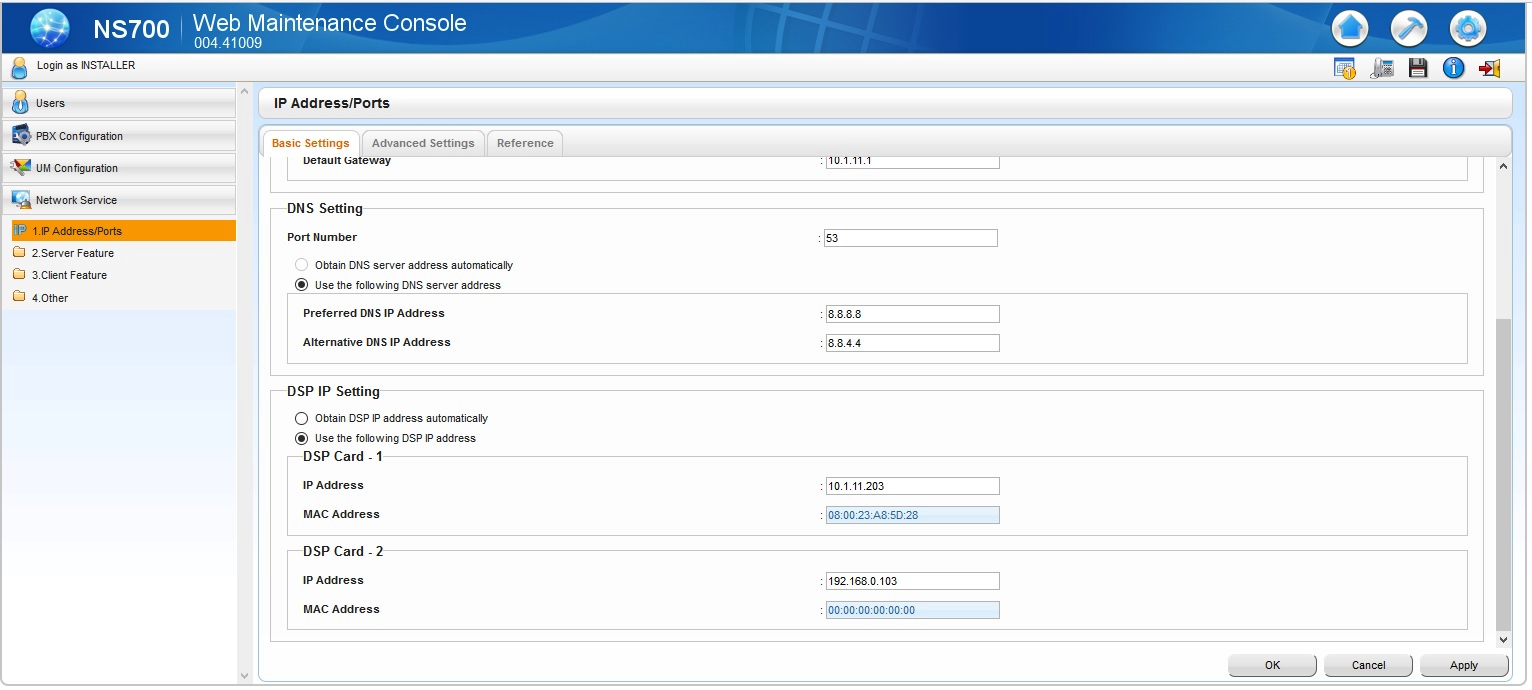

8. Navigate to the "Network Service" menu on the left. Under that menu, select "IP Address/Ports". On this screen you will configure your LAN with STATIC IP/DNS/DSP IP.
Click "Apply".

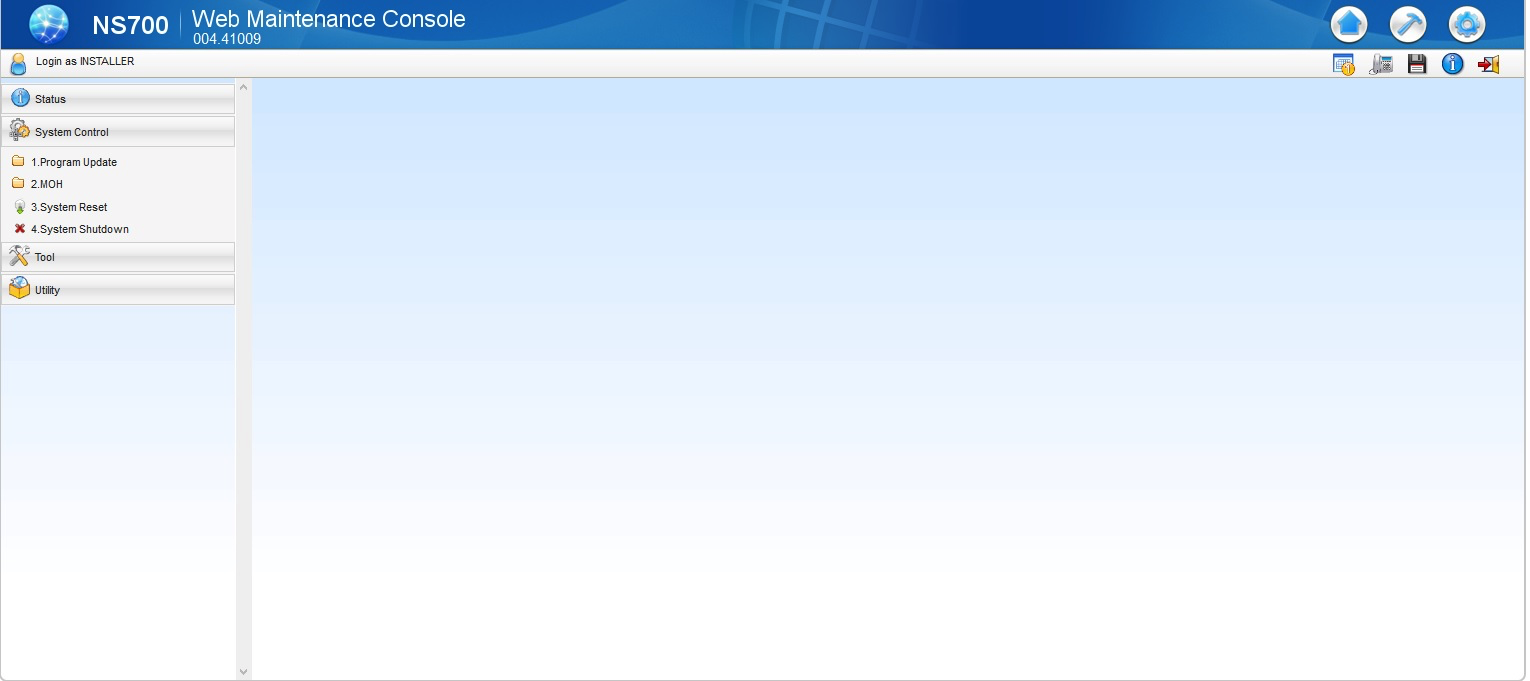

9. Finally, reset your system by navigating to the System Control menu on the left. Choose the "System Reset" option.
